铝瓦楞板 Aluminum corrugated board

中国最早生产加工铝单板天花、幕墙厂家之一

prev next

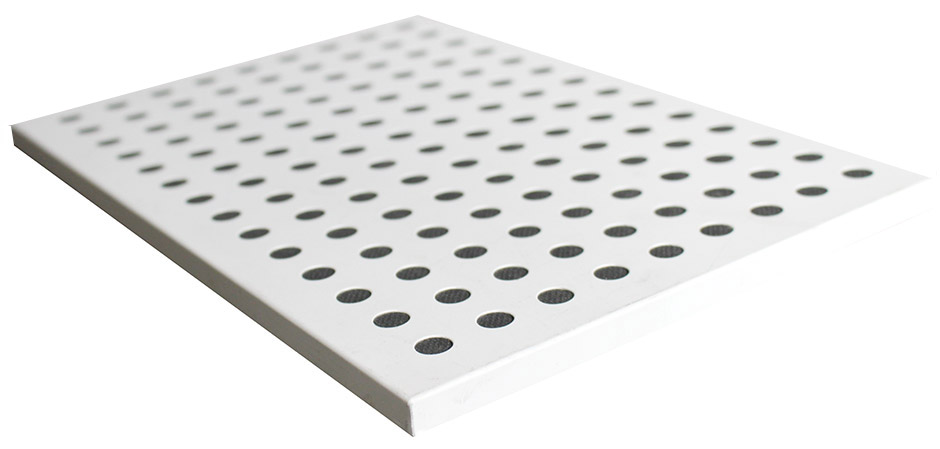

冲孔瓦楞铝板

冲孔瓦楞铝板主要应用于大厦的外墙装饰,是一种豪华富丽的装饰材料,其面板主要选用优质的3003H24合金铝板5052AH14高锰合金铝板为基材,面板厚度为0.8~1.5mm氟碳滚涂板,底板厚度为0.6~1.0mm,总厚度为10mm~25mm为宜。芯材采用六角形3003型铝蜂窝芯,铝箔厚度0.04~0.06mm,边长5~6mm,采用高分子胶膜和改性环氧,全封闭无尘作业,用全自动蜂窝板复合生产设备通过加压高温复合而成,克服了以往蜂窝板粘接层的脆性问题。使铝蜂窝板在潮湿、高温的情况下,都不会发生变化,属一种高质量、轻质、高强度外表豪华富丽的绿色环保装饰材料。

全国咨询热线

13327712822

立即定制 在线咨询



铝单板幕墙


铝单板幕墙铝蜂窝板主要应用于大厦的外墙装饰

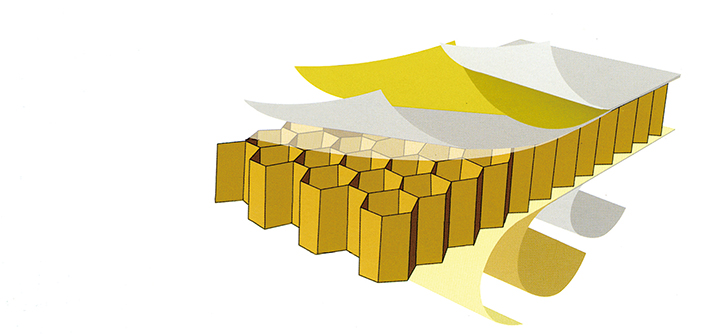

这是一种豪华富丽的装饰材料,其面板主要选用优质的3003H24合金铝板5052AH14高锰合金铝板为基材,面板厚度为0.8~1.5mm氟碳滚涂板,底板厚度为0.6~1.0mm,总厚度为10mm~25mm为宜。芯材采用六角形3003型铝蜂窝芯,铝箔厚度0.04~0.06mm,边长5~6mm,采用高分子胶膜和改性环氧,全封闭无尘作业,用全自动蜂窝板复合生产设备通过加压高温复合而成,克服了以往蜂窝板粘接层的脆性问题。使铝蜂窝板在潮湿、高温的情况下,都不会发生变化,属一种高质量、轻质、高强度外表豪华富丽的绿色环保装饰材料。

使用传统的热压机复合,每次压蜂窝板数件不多,影响工作效率,另在取下蜂窝板时,蜂窝板的温度突然下降,使蜂窝板很容易弯曲、变形,影响蜂窝板质量。本公司采用先进的全自动蜂窝板复合生产线,生产效率高,温度稳定,产品复合过程由低温→中温→高温→中温→低温→定型冷却→下板。设备可连续性复合铝蜂窝板,使铝蜂窝板粘接更牢固,更抗弯挠,板块更平直,质量更稳定可靠。

An aluminum honeycomb panel is a kind of ideal decoration material. Excellent 3003H24 alloy aluminum panel or 5052AH14 high manganese alloy aluminum panel is selected for surface panel rolling coated with fluorine carbon, with a thickness of 0.7-1.0mm. The thickness of bottom panel is 0.6-1.0 mm and the total thickness is 10-25 mm. Hexagons 3003H24 aluminum honeycomb core is adopted for core material, with aluminum foil thickness, of 0.04-0.06 mm and border length of 5-6 mm.


铝单板幕墙



铝单板幕墙比重轻、强度高、刚度大、结构稳定、抗风压好

                 Light specific gravity, high intensity, high rigidity, steady structure and high wind-resistance performance.


铝蜂窝板以其质轻、强度高、刚度大等诸多优点,已被广泛应用于大厦外墙装饰。具有相同刚度的蜂窝夹层板重量仅为铝板的1/5,钢板的1/10。总厚度为15mm,面板为1.0mm,底板为0.8mm的铝蜂窝板,重量只有6公斤/平方米。相互连接的蜂窝芯就如无数个工字钢,芯层分布固定在整个板面内,不易产生剪切,使板块更加稳定,更抗弯挠和抗压,其抗风压大大超越于铝塑板和铝单板,并且有不易变形,平直度好的特点,即使蜂窝板尺寸很大,也能达到极高的平直度。铝蜂窝板以其最小的重量而达到最大的强度和挠度。并在于出色的刚性重量比,以最小的材料获得最大受力,是其它材料不可比拟的特点,是目前建筑业首选的轻质材料。

Aluminum honeycomb panels have been extensively applied to external wall decoration of high-rises. Honeycomb sandwich panels of the same rigidity have a weight that only 1/5 of aluminum panels and 1/10 iron panels. Aluminum honeycomb panels, whose total thickness being 15mm, panels 1.0mm thick and bottom panel 0.8mm think have a weight of only 6 kilos per square meter. The interconnected honeycomb cores are like numerous 1 bars with interface layers distributed within the whole panel, thus resisting shearing and bending and large pressure. It’s wind-resistance performance has greatly exceeded that of aluminum-plastic panels and aluminum single aluminum panels, so that even large-sized honeycomb panels can reach extremely high straightness. Aluminum honeycomb panels can reach the highest intensity and bending resistance with the lightest weight, which is an incomparable material, thus making it currently the preferred light weight material in the building industry.


铝单板幕墙


铝单板幕墙隔音、隔热、防火、防震功能突出

                 Excellent performance in sound insulation, heat insulation, fireproofing and quakeproof.


由于蜂窝复合板内的蜂窝芯分隔成众多个封闭小室,阻止了空气流动,使热量和声波受到极大阻碍,因此,起到隔热、保温、隔音的效果。对100 -3200HZ的声源隆澡可达20~30dB,导热系数为0.104-0.130W/M.K,因而铝蜂窝板的能量吸收能力为150-3500KJ/M2是一种理想的节能材料。如遇下大雨时,雨点打在铝单板或铝塑板面上时噪声特别大,而蜂窝板就避免了这种情况。

Since the honeycomb cores in aluminum composite panels are divided into many enclosed cells, which stops air flows and blocks heat and sound waves with 20-30 DB noise reduction for sources from 100HZ to 3200HZ and a heat conduction coefficient of 0.1040.130W/M.K. Aluminum honeycomb panel is an ideal energy saving material with an energy absorption capability of 150-3500KJ/M. For example, when it is raining, rain dropping on the aluminum single aluminum single panels or aluminum-formed panels will make a loud noise, but if replaced them with honeycomb panels, no such problems will occur.


铝单板幕墙


铝单板幕墙外观平直、颜色多样、高雅光洁、经久耐用

                 Flat and straight in vision and diverse in color, elegant and bright.


不同规格尺寸的蜂窝板都具有极高的平整度,并且有不易变形的优点,本公司生产的铝蜂窝板一般采用氟碳滚涂铝板做面板。氟碳滚涂铝板最重要的一点是采用了连续的辊涂工艺,铝板的涂漆是一次性完成的,保证其产品无色差,涂层流平度好,质量可靠。同时能长时间保持建筑物外墙颜色鲜艳。经过长期日晒雨淋或工业废气污染后,很明显滚涂板要比喷涂板洁净光亮,并具有良好的附着力和耐候性,是世界建筑人士公认的第一流材料。

Aluminum honeycomb panels of different specifications and sizes all have extremely high straightness and have the advantage of not ease to distortion. The panels mainly adopt fluorocarbon coil coating. A critical point for fluorocarbon coil coating aluminum panels is that it employs the technique of continuous coil coating. The coating of aluminum panels is completed at the first time. Therefore, the products with positive quality are free from chromatic aberration, excellently flat in coating, and keep the external wall of buildings brightly-colored over a long period of time. After a long time be exposed to the sun and rain or polluted by the industrial waste gas, obviously you can find the roller coating aluminum panels are brighter than the spraying coating aluminum panels, which has good adhesive force and climate-resistance. So the roller coating aluminum panels are recognized as the first-class construction materials by the world architects.


铝单板幕墙


铝单板幕墙装饰性强,安装方便、快捷

                 Find decoration effect, easy and rapid installation.


蜂窝板的双面板可根据不同的要求选用不同材料,如铝板、不锈钢板、彩钢板、天然石材。幕墙铝蜂窝板是根据现场设计的尺寸,在工厂加工,四周弯折,然后复合成型,再冲挂耳,挂耳与板块连成一整体,使成形后的蜂窝挂板更加牢固。蜂窝板可做成平板、弧形板和“L”型板,全工厂化生产,质量可靠、安装方便、快捷。

The bottom panels of honeycomb panels can adopt different materials according to different requirements, such as aluminum panels, corrosion resistant panels, colored steel panels and natural stones. The aluminum honeycomb panels are processed in factories according to sizes designed in site. The surroundings of the panels are bent and then formed by hybrid forming. The suspension loops are punched and made into a whole with the panel which makes shaped honeycomb panels firmer. The honeycomb panels can be made into flat panels, panels of arc type and L type and U type through the full factory run with positive quality and easy installation.


铝单板幕墙



undefined

undefined



Enterprise Introduce

企业介绍

广州科莱思诚铝业有限公司总部位于广东省广州市番禺区,是中国大陆最早生产加工铝单板天花,铝单板幕墙的企业之一,其前身是广东地区闻名遐迩的专业OBM代加工企业,公司占地3万余平方米,总投资3000万元,主要设有幕墙板材加工车间、铝天花板加工车间、蜂窝板复合车间,异型板材加工车间、吸音板加工车间,PPG喷涂车间、大型仓库及综合办公大楼等。

公司拥有先进的、自动化的生产设备:大型数控加工中心、数控多工位冲床、6m数控剪板机、折弯机、雕刻机床、6m数控折弯机等专业生产设备以及美国PPG、AkzoNobel及DURACOAT认可的并由美国公司设计制造长达580米的计算机数控喷涂流水线。公司现有职工三百余人,其中75%具有大专以上学历。工程技术团队由经验丰富的专业人员组成,曾参与国内外大型工程项目的跟踪设计与安装施工。并且通过同德国的Deckel、Maho、美国佛罗伦萨KME公司、Gildmeiste r技术合作,同长安大学建筑声光研究所、同济大学声学研究所技术合作,不断提高研发能力,强化产品质量。

目前,KLCC铝业的产品已经拥有铝单板天花、幕墙、蜂窝板、吸音板、垂帘挂片、铝方通、铝镁锰屋面等上百种产品规格型号。公司凭借强大的研发能力及对卓越品质的执著,进一步加强KLCC铝业的市场影响力,更好的为客户提供快捷、优质的产品与良好的服务。

“天行健,君子以自强不息,地势坤,君子以厚德载物”,KLCC铝业以诚信做人的本质,踏实做事的态度,高目标的追求、严格而精细的管理、精良的技术装备 ,将一如既往服务客户,为将“KLCC铝业”打造成世界名牌而努力奋斗!
